Schematic

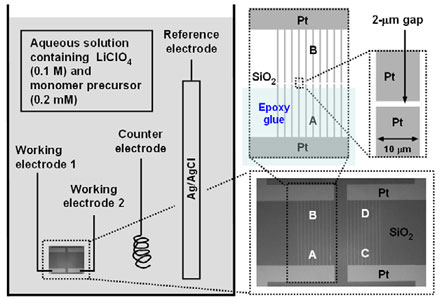

Schematic representation of a three-port electrochemical set-up which is connected with a device pattern composed of 40 finger-shaped Pt electrodes. The 40 finger-shaped Pt electrodes are internally connected together to give four isolated electrode groups (A, B, C and D). This device was employed for electrochemical growth of polypyrrole- and PEDOT-based CPNEJs.
