Jan 31, 2011
Dots, rods and tetrapods: CdSe gets in shape

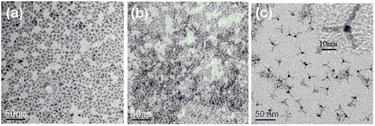

Researchers from the South China University of Technology have presented a surfactant-free recipe for fabricating high-quality CdSe nanocrystals (NCs). The morphology, which includes irregular dots, rods, tetrapods and sphere-shapes, can be controlled easily by varying the experimental conditions. More importantly, the preparation techniques involved are simple, low-cost and can be used to fabricate other II-VI group semiconductor NCs.
The CdSe NCs were produced with a ﬁxed Cd/Se molar ratio of 2:1 and using 2.32 g of trioctylphosphine oxide (TOPO); at the same time, all the trioctylphosphine selenide (TOPSe) injections were kept at 1 ml, but with different concentrations. No other ligands were used in the case study.
Homogeneous CdSe NCs with different morphology were obtained under such experimental conditions. The sample quality (size distribution, optical properties, tetrapod selectivity) is as good as that of the best CdSe NCs synthesized by using extra ligands. As for the growth mechanism, we believed that the decomposition of TOPSe and cadmium myristate at a temperature of 240 or 300 °C would also supply in situ-generated TOP and myristic acid in the reaction mixture, which affected the anisotropic growth of CdSe NCs.
To further investigate the application of this surfactant-free recipe, the group is now optimizing the experimental conditions and has found that well controlled morphology of CdTe and/or CdSexTe1–x NCs can also be successfully fabricated.
Thanks to the easily controllable NC-growth kinetics, such a synthesis route is very promising for low cost, large-scale preparation of CdSe and CdTe NCs for application in solution-processed thin-film solar cells.
More information can be found in the journal Nanotechnology.
About the author
The study was funded by the National Natural Science Foundation of China (nos. 50703012, 50773023 and 50990065), the National Basic Research Program of China (973 program no. 2009CB623600) and SCUT grant (no. 2009ZZ0003). The experiments were performed at the Institute of Polymer Optoelectronic Materials and Devices, Key Laboratory of Special Functional Materials group. Hongmei Liu is a PhD student in materials science and holds a bachelors degree in chemistry. Currently she is exploring the fabrication of high-quality semiconductor nanostructures, together with the measurement and application of the resulting nanostructures in the field of solution processed thin-film solar cell systems and other nano-electronic devices.
