Controlling carbon nanotube deposition from solution
Dielectrophoresis (DEP) is a popular method for fabricating carbon nanotube (CNT) devices from solution, but it is usually forgotten that the DEP force is not the only factor affecting the CNTs during the deposition process. While the DEP force plays the dominant role in some types of CNT solutions, in others it is the second player after the electrothermal force at frequencies typically used for the deposition of CNTs. The conductivity of the solution is crucial in determining the relative strengths of the two forces.
Researchers from the Department of Electrical and Computer Engineering at the University of British Columbia in Canada are studying the interplay between the two forces in various solutions. To obtain solutions that can be used for a fair comparison, the team took a creative approach and prepared one type of solution from the other.

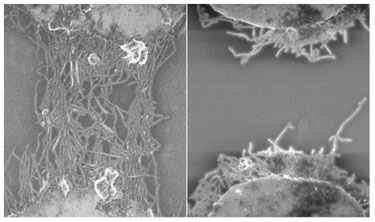

The scientists then performed a series of systematic experiments and simulations, which showed that for different solutions the strength of the forces change drastically and, therefore, the fabricated devices look very different. They observed that the direction and effectiveness of the electrothermal force is orders of magnitude different in the various solutions, which could lead to inconsistent and irreproducible results if ignored during production.
The drastic differences among the nanotube patterns deposited from various solutions highlights the importance of engineering the solution properties to generate the desired device structure.
When depositing material from a surfactant-containing solution, the CNTs tend to cover the edges of metallic electrodes, which makes this approach more suitable for applications involving dense nanotube patterns. On the other hand, avoiding surfactants and, instead, functionalizing the nanotubes to disperse them in the solution might be more appropriate for making electronic and photonic devices because in this case the CNTs bridge the electrodes more effectively.
More information can be found in the journal Nanotechnology.
