Jan 23, 2003
Molecular doors open the way to controlled drug delivery
Scientists from the National Institute of Advanced Industrial Science and Technology (AIST-Kansai), Japan, have developed a nanoporous material that opens or closes its pores under the influence of light. The modified hexagonal mesoporous silica could have applications in the controlled release of chemicals, for example in drug delivery systems.
"I am concerned about the serious effects of artificial chemicals on the environment and living bodies," Masahiro Fujiwara told nanotechweb.org. "One approach to the problem is the use of those chemicals only 'when they are required, where they are required' and in the required quantity. I wish to create the material for this technology."
Fujiwara and colleagues used the hexagonal mesoporous silica MCM-41, which they modified with molecules containing coumarin groups. The team attached these molecules to the outlets of the pores, rather than to their inside walls, by using MCM-41 still filled with the template molecules that directed its pore formation. As a result, the coumarin molecules formed a "molecular door" at the pore outlet.

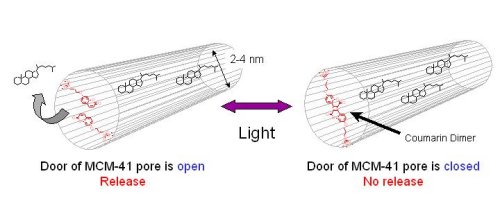

Shining ultraviolet light with a wavelength longer than 310 nm onto the silica caused the coumarin-bearing molecules to dimerize (i.e. join together) so that they blocked the exit from the pore (see figure). Applying light with a wavelength of around 250 nm, on the other hand, split up the dimers and opened the "hinged double door".
"The significant technical factor is the preparation method to attach the coumarin substituent selectively near the outlet of the pore," explained Fujiwara. "If the substituent is not attached densely near the outlet of the pore, the controlled release is not effective."
Now the researchers, who reported their results in Nature, plan to use stimuli other than light to open or close the doors, for example pH, temperature, ions, molecules, enzymes or viruses.
About the author
Liz Kalaugher is editor of nanotechweb.org.
