Nanowire layout suits large-area single photon detection
Superconducting nanowires can be used to realize high-performance broadband single photon detectors at infrared-visible wavelengths, which could be useful in many different applications such as quantum communication, quantum cryptography, biomedical and time-resolved fluorescence and 3D imaging.
Researchers in Italy are studying the extreme energy sensitivity of niobium nitride nanowires at cryogenic temperatures where they are superconducting. In these nanowires, the conduction electrons have the remarkable property that a phase transition, from a superconducting to a resistive state, can be induced by the absorption of an energy as low as 0.25 eV corresponding to a single photon with a 5 µm wavelength.
The high sensitivity in energy is achieved by using nanowires with a very small transverse area. The nanowires are realized by depositing an ultra-thin film of niobium nitride, which is successively patterned through electron-beam lithography and reactive ion etching. To achieve a reasonable area coverage a very long meandered nanowire has been used, but this detector configuration is not well suited to meet the demands of higher energy sensitivity or large-area coverage because it loses speed, due to a large inductance.

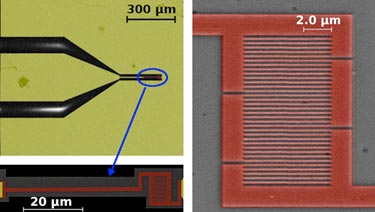

Parallel detector array
In a recent study, which was published in Superconductor Science and Technology, the authors showed that parallel nanowires can be used to significantly increase the area coverage with no loss in key detector characteristics such as efficiency and speed. In the parallel configuration, a large and fast signal is generated because the photon induces a cascade switch of all the parallel nanowires to the resistive state.
A total of 24 such nanowires in various configurations were used to show that the possible detector area increases with the square of the number of parallel nanowires used. The successful operation of a single photon detector in which all 24 nanowires were connected in parallel demonstrates that an increase in area coverage of up to at least 100 µm × 100 µm should be obtainable with a detector speed comparable to current 15 µm × 15 µm nanowire detectors.
Back in the lab, the team is concentrating on the fabrication of large-area detectors as well as on characterizing the influence of parallel nanowires on other detector characteristics such as the photon arrival time resolution and the noise.
About the author
The work was performed at CNR-Institute of Cybernetics, at CNR-Institute of Photonics and Nanotechnologies, at the University of Salerno and supported by the EU project "SINPHONIA" NMP4-CT-2005-016433. Dr Mikkel Ejrnaes, Dr Roberto Cristiano and Alessandro Casaburi are with CNR-Institute of Cybernetics. Alessandro Gaggero, Dr Francesco Mattioli and Dr Roberto Leoni are with CNR-Institute of Photonics and Nanotechnologies. Dr Orlando Quaranta, Stefania Marchetti and Prof. Sergio Pagano are with the University of Salerno.
