Graphene makes tunable terahertz device
Graphene – a layer of carbon just one atom thick – strongly responds to light at terahertz frequencies. Researchers at the Lawrence Berkeley National Laboratory and the University of California at Berkeley now claim that they can tune how the material responds to this light. The findings could help make graphene-based terahertz metamaterials for a wide range of applications that include medical imaging and security screening.
Terahertz radiation could, for example, be employed at airports to detect items such as concealed weapons and explosives. This is because the radiation passes through clothing and packaging but is strongly absorbed by metals and other inorganic substances. However, terahertz waves lie in a spectral range (between the microwave and mid-infrared regions) that are difficult to work with for lack of the right tools.

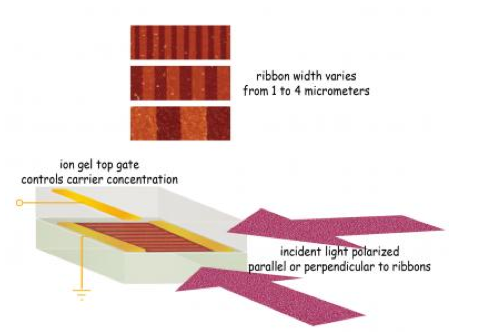

Feng Wang and colleagues say that they have made the "beginnings of a toolset" for experiments in this wavelength range. A device that they developed consists of an array of graphene nanoribbons whose response to terahertz radiation can be tuned by varying the width of the ribbons and the number of charge carriers (electrons and holes) in the structures. In fact, varying these two parameters allows the researchers to control the collective oscillations of electrons (or "plasmons") in the graphene ribbons, and it is these plasmons that strongly couple to the terahertz light.
Plasmons are more familiar to us in the high-frequency, visible part of the electromagnetic spectrum and notably in 3D metallic nanostructures. One well known example of where they can be seen is in stained glass windows. Here, the colours come about from oscillating collections of electrons on the surfaces of nanoparticles of gold, copper and other metals contained in the glass. However, graphene is only one atom thick and its electrons move in just two dimensions, explains Wang, so plasmons in this material occur at much lower frequencies.
What is more, terahertz radiation lies in the wavelength range of between about 1 to 0.03 mm but the width of the graphene ribbons is just 1–4 µm. "A material that consists of structures with dimensions much smaller than the relevant wavelength, and which exhibits optical properties distinctly different from the bulk material, is called a metamaterial," said Wang in a LBNL press release. "So we have not only made the first studies of light and plasmon coupling in graphene, we've also created a prototype for future graphene-based metamaterials in the terahertz range."
So, how can varying the width of the graphene nanoribbons make them absorb different frequencies of light? As mentioned, a plasmon describes the collective oscillations of many electrons but its frequency depends on how rapidly these oscillations travel between the edges of a ribbon. When light of the same frequency as the oscillations is applied, a "resonant excitation" results, something that produces an increase in the strength of the oscillations and the amount of light absorbed at that frequency. Because the frequency of the oscillations depends on the width of the ribbon, varying its width thus allows it to absorb different frequencies of light.
The number of charge carriers in the ribbon can also affect the strength of the coupling between light and plasmons. One advantage of graphene is that the concentration of charge carries can easily be increased or decreased in the material by applying a strong electric field. Such a technique is called electrostatic doping. Finally, the researchers have also found that light shone perpendicularly onto the ribbons is much better absorbed at the plasmon resonant frequency than light shone at other angles.
Wang and co-workers obtained their results by shining terahertz light (from the beamline at Berkeley Lab's Advanced Light Source) onto the graphene ribbon arrays. They then measured the light transmitted using the beamline's infrared spectrometer. The result shows that coupling between light and plasmons in graphene is an order of magnitude stronger than in other 2D systems, like semiconductors. The light absorption in graphene can also be measured at room temperature unlike in these other materials, which need to be near absolute zero in experiments.
"Wang's team reports an interesting study of plasmons in graphene ribbons and show how to tune their properties, and the work represents a further step in understanding light-electrons interactions in this material," commented Andrea Ferrari of Cambridge University, who was not involved in the work. "The THz range covered by these experiments could eventually enable products such as portable terahertz sensors for remote detection of dangerous agents, environmental monitoring or high-speed wireless communications. However, to achieve these goals will require much more effort on the part of the graphene and plasmonics communities."
Wang told nanotechweb.org that his team, for its part, is now looking into designing different metamaterial structures from graphene and examining their properties.
The current work is published in Nature Nanotechnology.
