Aug 10, 2012
Wireless power for the price of a penny
The newspaper-style printing of electronic equipment has led to a cost-effective device that could change the way we interact with everyday objects. For a price of just one penny per unit the circuit, which is formed by depositing various nanoinks on a polymer substrate, can be placed onto objects such as price tags, logos and signs so that we can read product information via our smartphones with one simple swipe.
This type of technology, which is known as near-field communication (NFC), has already been implemented to allow fast money transactions; however, this new device could lead the way to large-scale adoption at a low cost. The design, created by researchers from Sunchon National University and Paru Printed Electronics Research Institute, could be implemented onto everyday items so that the objects can harness the power given off by a smartphone’s radio waves and send information back to it via printed digital circuits.

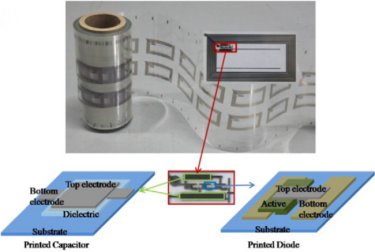

Dubbed a rectenna, the circuit is a combination of an antenna and a rectifier – a device that converts alternating current (AC) into direct current (DC). In the work, the rectenna was printed onto plastic foils in large batches using a roll-to-roll process at a rate of 8 m min–1. Five different electronic inks were used – Ag nanoparticle-based conductive ink for the antenna and electrode, ZnO-based semiconducting ink for the active layer of the diode, Al-based conductive ink for the top electrode of the diode, BaTiO3 nanoparticle-based high k dielectric ink for dielectric layer of the capacitor, and an epoxy-based ink for the insulating layer.
The researchers state that the rectenna can draw power directly from radio waves given off by a mobile phone, converting AC into DC. The rectenna created in this study could provide at least 0.3 W of power from an alternating current, which had a frequency of 13.56 MHz.
NFC technology is very similar to QR codes, whereby users take a photo of a square-shaped bar code on a poster or advert using their smartphone. The difference with NFC is that items will contain a small computer chip or digital information, operated by DC power.
“What is great about this technique is that we can also print the digital information onto the rectenna, meaning that everything you need for wireless communication is in one place,” said Gyoujin Cho of Sunchon National University.
“Our advantage over current technology is lower cost, since we can produce a roll-to-roll printing process with high throughput in an environmentally friendly manner. Furthermore, we can integrate many extra functions without huge extra cost in the printing process.
“The application of NFC technology with the smartphone will be limitless in the near future. The medical, automotive, military and aerospace industries will benefit greatly.”
Full details can be found in the journal Nanotechnology.
